Cordless Angle Impact Wrench

DTL301

Information & Technology

Features

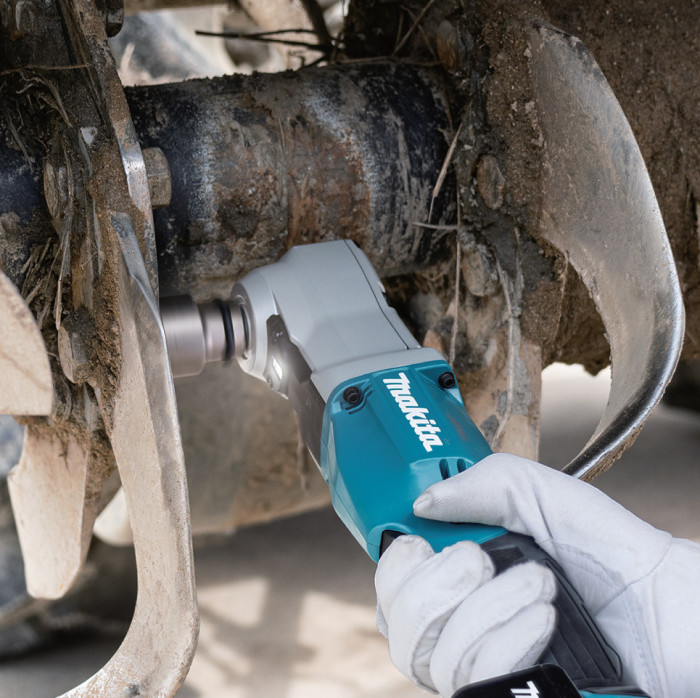

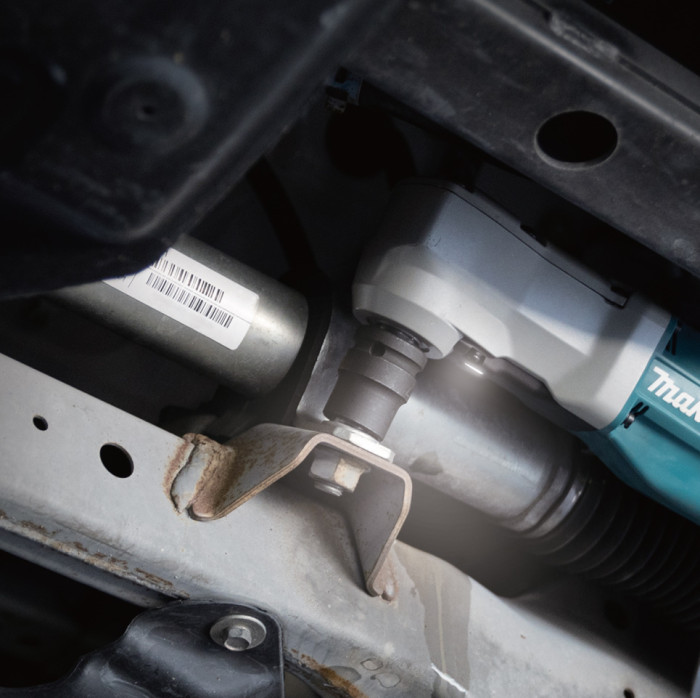

1. Slim tool head allows access to tight spaces

2. 340Nm max of fastening torque

3. Automatic impact stop system in forward/reverse rotation

4. 3 stage LED Job light with after glow function

5. Designed for high workload efficiency on a single battery

Where to buy

Diagram_Part_DTL301.pdf DTL300_DTL301_DTL302_lealfet.pdf

Product Specification
Standard Accessories

Max fastening torque	: 310 - 340 N·m (230 - 250 ft.lbs.)
Nut-busting torque	: 500 - 530 N·m(370 - 390 ft.lbs.)
Square drive	:12.7 mm (1/2")
No load speed	Hard / Med. / Soft : 0 - 3,200 / 0 - 1,500 / 0 - 1,000 minˉ¹
Impacts per minute	Hard / Med. / Soft : 0 - 4,000 / 0 - 2,800 / 0 - 1,800 minˉ¹
Head height	: 81.0 mm (3-3/16")
Vibration level*1	:14.4 m/s² ( Mode*2)
Uncertainty (K) for Vibration*1	1.5 m/s² ( Mode *2)
Sound pressure level*1	:100 dB (A) / DTL302: 96 dB(A)
Sound power level*1	:108 dB (A) / DTL302: 104 dB (A)
Dimensions (L x W x H)	396 - 414 x 80 x 86 - 92 mm
Net weight	: 1.8 - 2.1 kg (4.0 - 4.6 lbs.)
